Switch Power Supply
Categories

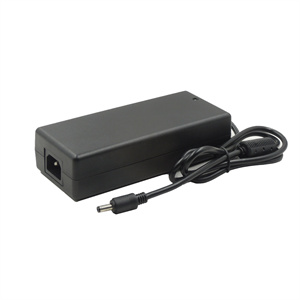

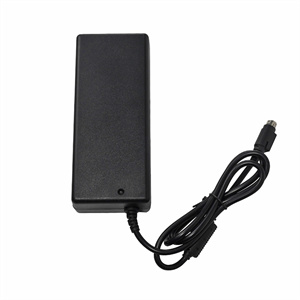

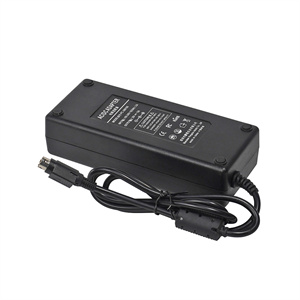

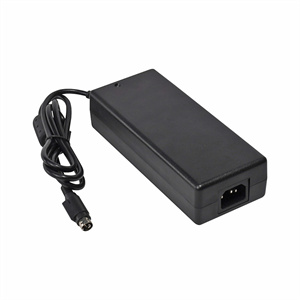

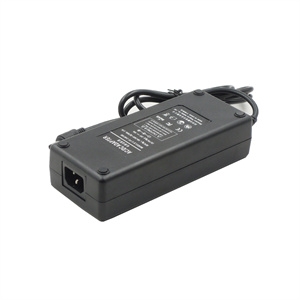

240W 24V 10A PC-240100
Model No:PC-240100Certification: UL,CE,RoHS,FCC,CB,SAA,etc.
Material:100% PC
Ripple&Noise：<240Mvp
Product description: The external 240W 24V 10A switching power supply unit has universal AC input: 100-240V. This power adapter also have over temperature, over load, over current and short sircuit protection.
INQUIRYModel No:PC-240100
AC input: 100-240Vac, 50/60HZ
DC voltage: 24V
Rated current: 10A
Rated power: 240W
Certification: UL,CE,RoHS,FCC,CB,SAA,etc.
Ripple & Noise: <240mVp-p
Efficiency:>88%
Voltage tolerance: ±5%
Line Regulation: ±1%
Load Regulation: ±5%
Short Circuit protection: shall be protected when any output operation in circuit short condition, and shall be auto restart when the fault condition is removed.
Over Current protection: 130%-150%
Over Voltage protection: 115%-135%
Operation Temperature: -10-50℃ (±10℃)
Storage Temperature: -40-80℃ (±10℃)
DC connector: PCIE-6Pin connector(Customized Available)
AC Power Cord: 0.8M/0.9/1.0M(Customized Available)
AC Power Cord: 1.2M AC Power Cable with UK/AU/USA/EU/India plugs
Specification and model:
www.szpcsy.cnNO.: Model: Output Voltage Output Current Output Power DC Connector 1 PC-120130 12V 13A 156W 4pin or 6pin etc. 2 PC-120140 12V 14A 168W 4pin or 6pin etc. 3 PC-120150 12V 15A 180W 4pin or 6pin etc. 4 PC-240075 24V 7.5A 180W 4pin or 6pin etc. 5 PC-240083 24V 8.3A 200W 4pin or 6pin etc. 6 PC-240092 24V 9.2A 220W 4pin or 6pin etc. 7 PC-240105 24V 10.5A 252W 4pin or 6pin etc. 8 PC-360050 36V 5A 180W 4pin or 6pin etc. 9 PC-360060 36V 6A 216W 4pin or 6pin etc. 10 PC-360070 36V 7A 252W 4pin or 6pin etc. 11 PC-4800375 48V 3.75A 180W 4pin or 6pin etc. 12 PC-4800416 48V 4.16A 200W 4pin or 6pin etc. 13 PC-4800458 48A 4.58A 220W 4pin or 6pin etc. 14 PC-480055 48V 5.5A 264W 4pin or 6pin etc.
